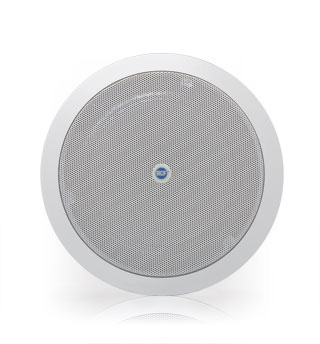

Описание за RCF PL 6X
Features
-
Two way speaker system with dome tweeter recommended for speech and background-music reproduction
-
Music power/RMS: 24/12W
-
6" woofer with coaxial tweeter 1"
-
Low impedance (8Ω) or 100V
-
Built-in multi-tapped transformer for 100/70V constant voltage connection
-
Three hooks mounting system (no screws or other attachment elements)
-
Body in self-extinguishing (UL 94V-0) plastic and front metal grille RAL 9003 White
-
IP 44 protection
Acoustical Specifications
-
Type of speaker: Ceiling
-
Frequency Response: 70 Hz ÷ 20 kHz
-
Max SPL @ 1m: 106 dB
-
Horizontal coverage angle: 100°
-
Vertical coverage angle: 100°
-
Power Handling: 12 W RMS
-
Peak Power Handling: 24 W PEAK
-
System Sensitivity: 92 dB
-
Impedance: 8 Ω
-
Protections: IP 44
Transducers
-
Speaker: 6"
-
Coaxial: 1"
Input Section
-
Input connector: 6 pin terminal block
-
Constant voltage: 100 V / 70 V
-
Power Selection: 12 - 6 - 3 W (100 V)
Cabinet
-
Hardware: Plastic material
-
Colour: White
-
Grille: Steel
Physical Specifications
-
Height: 73 / 2.87 mm/inch
-
Width: 204 / 8.03 mm/inch
-
Depth: 204 / 8.03 mm/inch
-
Net weight: 1.28 / 2.82 kg/lbs
Shipping information
-
Package height: 110 / 4.33 mm/inch
-
Package width: 240 / 9.44 mm/inch
-
Package depth: 240 / 9.44 mm/inch
-
Shipping weight: 1.56 / 3.43 kg/lbs
