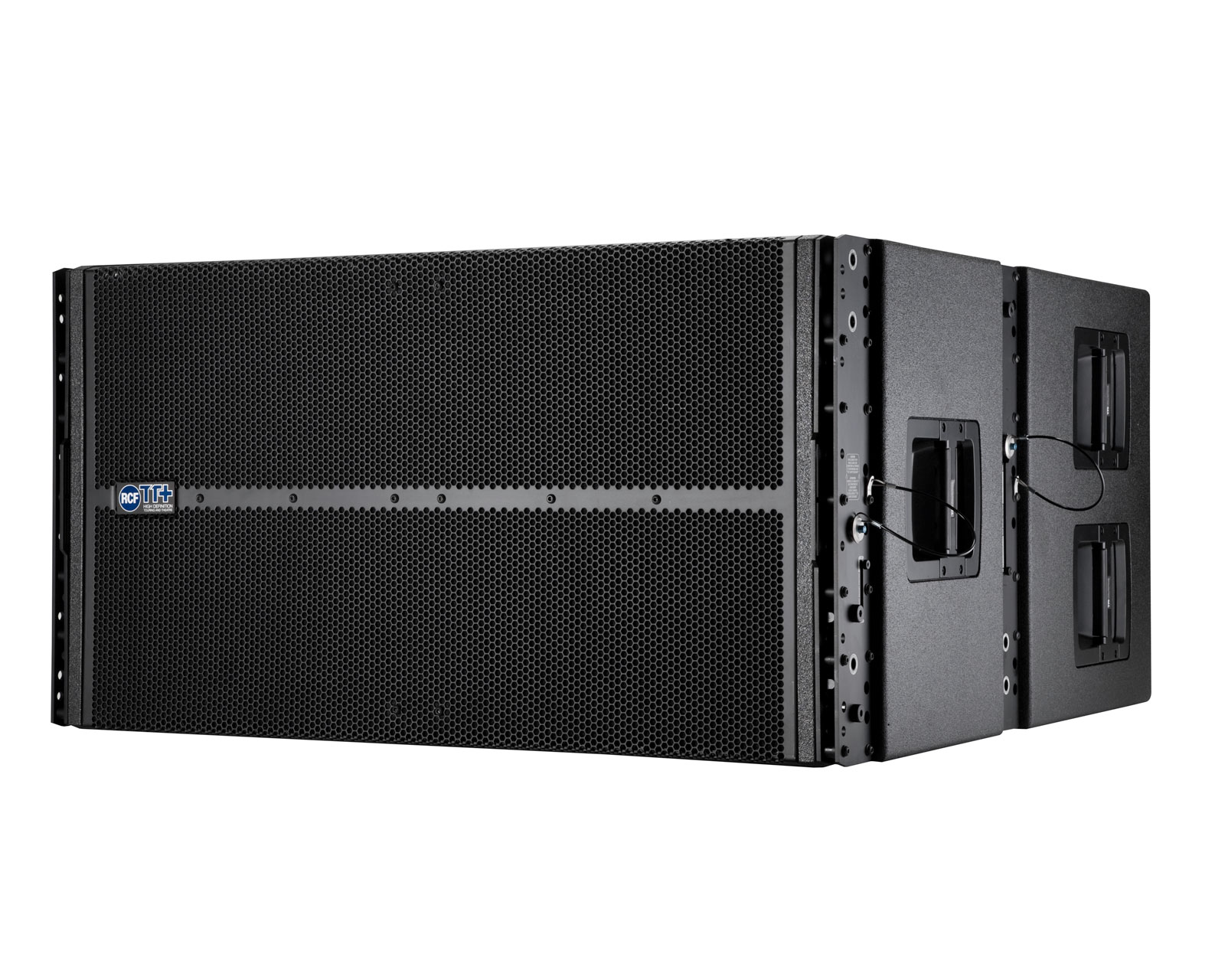

Описание за RCF TTL36-AS
Features
-
4000 Watt (2 x 2000 W digital switching amplifiers)
-
2 x 18" high power neodymium woofer, 4.5" v. c.
-
96 Khz, 32 bit DSP processing
-
Remote monitoring and control
-
Time delay alignment
-
Cardioid preset for stacking groups of 3
-
Tour grade Baltic birch cabinet, integrated rigging.
-
RDNet on board
-
Maximum output per size
Acoustical Specifications
-
Frequency Response -3 dB: 35 Hz ÷ 120 kHz
-
Max SPL: 142 dB
-
Woofer: 2 x 18" neo, 4.5" voice coil
Input/Output Section
-
Input signal: Bal/unbal
-
Input connectors: XLR, RDNet Ethercon
-
Output connectors: XLR, RDNet Ethercon
-
Input sensitivity: -2 dBu / + 10 dBu
Processor Section
-
Crossover frequencies: 80 Hz/100 Hz
-
Protections: Thermal, Excurs., RMS
-
Limiter: soft limiter
-
Controls: DSP controlled
Amplifier Specifications
-
Total power: 2 x 2000 W
-
Low frequencies: 2 x 2000 W
-
Cooling: Convection/Forced
-
Connections: Powercon
Cabinet
-
Cabinet Material: Baltic birch
-
Hardware: Array fly-ware
-
Handles: 6 on side
-
Colour: Black
Physical Specifications
-
Height: 536 / 21.10 mm/inch
-
Width: 1022 / 40.23 mm/inch
-
Depth: 970 / 38.18 mm/inch
-
Net Weight: 120 / 264.55 kg/lbs
